Meadow Creek TS500 Tank Smoker Trailer

$19,425.00

Description

The TS500 Tank Smoker Trailer is a beast and a handsome one at that! It’s built out of a 500-gallon tank and boasts nearly 46 square feet of the cooking area—that’s enough space for 60 racks of ribs lying flat!

The spacious warming box will hold six full-size restaurant pans. Along with all of the other features standard on the TS series trailers, the TS500 BBQ smoker is ready to face the hungry crowds.

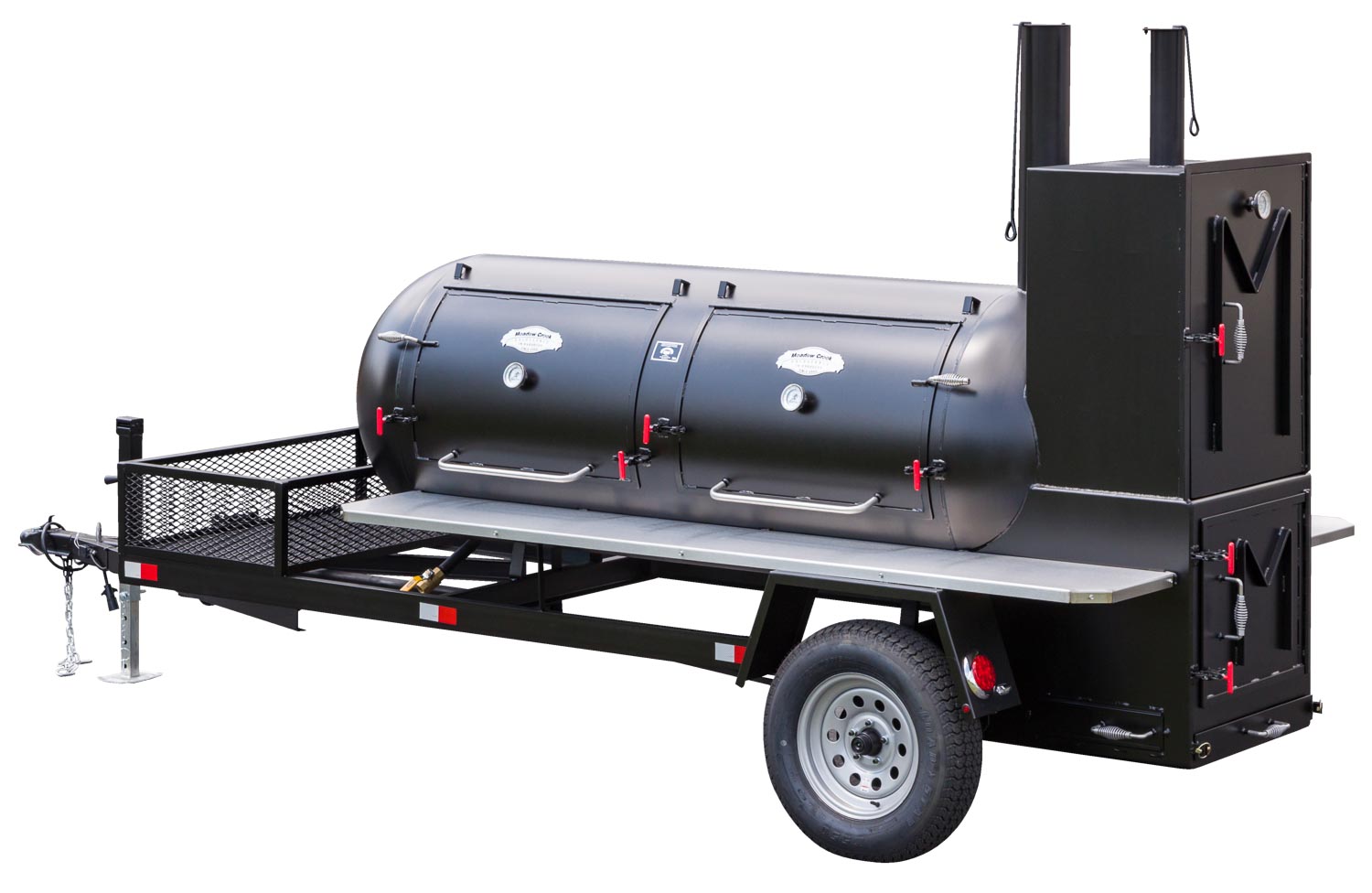

This trailer comes standard on a heavy-duty single axle chassis. It’s shown here with the optional double axle, trim package, stainless steel work shelves, mounted chicken cooker with stainless steel lid, and spare tire.

Custom options include adding any Meadow Creek cooker to the TS500 or incorporating the TS500 with any custom BBQ trailer.

Features of the TS500 Barbeque Smoker

  • Reverse flow draft
  • Wood box
  • Positive-lock latches on all doors
  • Grate in firebox with slide-out ash pan
  • Drain with ball valve for draining the tank
  • Stainless steel handles
  • Stay cool handles, firebox door, and warming box door
  • 2 exterior work shelves
  • Warming box with 3 shelves
  • Stainless steel calibratable thermometer on smoker and warming box doors
  • Heat baffles on firebox protect the tires from excessive heat.
  • Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
  • Built-in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
  • Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
  • 2 doors on each side of the smoker
  • 5,000 lb. single axle with brakes
  • Trailer is built on a 4″ channel frame and features a 2-5/16” ball hitch and safety chains, heavy-duty drop leg jack, rubber torsion axle, road tires, and DOT-compliant flush-mount LED lights with 7-round RV plug, reflector strips, and VIN plate.

Additional Information

Overall Dimensions

202"l x 72"w x 98"h

Cooking Area

46.96 sq. ft. (6,762 sq. in.)

Grate Dimensions

2 – 30" x 34.5", 4 – 34" x 34.5"

Space Above Top Grate

6.5”

Space Between Grates

5.75”

Grate Style

Wire Grid With 1/2” Spacing

Tank Dimensions

37” x 108” (500-gallon)

Metal Thickness on Tank

0.25”

Fire Box Dimensions

30.5” Cube (Inside: 30” x 30” x 18”*)

Metal Thickness on Fire Box

0.25”

Warming Box Dimensions

21” x 27.5” (Inside)

Warming Box Grate

21” x 28”

Space Between Grates Warmer

8.5”

Axle Rating

5,000 lbs.

Net Weight

2,800 lbs.

Shipping Weight

2,800 lbs.

Capacity Pork Butts

64-65

Capacity Baby Back Ribs

50-60

Capacity Spare Ribs

35-40

Capacity Whole Briskets

46-50

Capacity Whole Chickens

100-105

Capacity Whole Pigs

4 x 40 lbs.
